How to maintain and care for door control equipment to extend its service life?

Regular cleaning: Remove dust and debris from the door body, track, sensor, and other parts.

Lubrication and maintenance: Regularly add lubricating oil to moving parts such as tracks, pulleys, chains, etc.

Check fasteners: Regularly check whether fasteners such as screws and nuts are loose, and tighten them in time.

Avoid overload operation: Do not force the door to open and close to avoid overloading the motor.

Professional maintenance: Regularly ask professionals to conduct comprehensive inspections and maintenance of door control equipment.

Sliding door gear racks serve as essential components in automation systems, particularly where linear movement needs to be accurately controlled by rotary motion. There are several types of gear racks used in sliding door systems, each suited to specific design requirements and operating conditions.

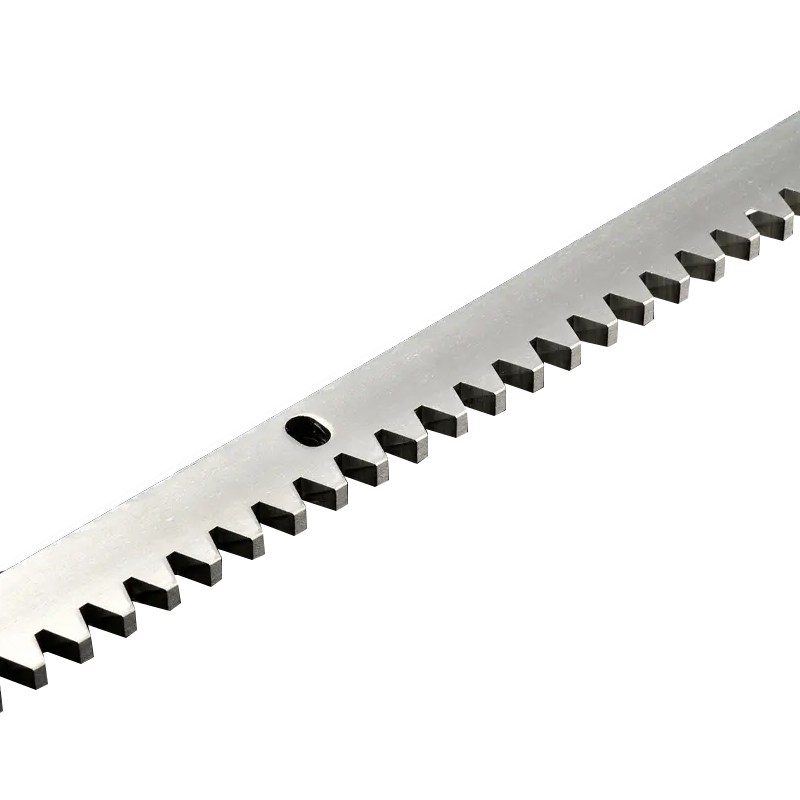

1. Straight Spur Gear Racks:

These are the basic and widely used type in sliding door systems. Featuring straight teeth aligned parallel to the rack's length, spur gear racks work with spur pinions to enable straightforward linear motion. They are generally made from steel, aluminum, or engineering plastics like nylon. These racks are ideal for simple, cost-effective installations.

2. Helical Gear Racks:

Helical racks have angled teeth, which engage more gradually with the pinion gear. This results in quieter and smoother operation compared to spur gear racks. Helical gear racks are often used in residential or commercial sliding doors where reduced noise and improved motion quality are important.

3. Nylon-Coated Gear Racks:

For applications where quiet operation and corrosion resistance are key, gear racks with nylon coating or construction are used. These may also be reinforced with metal inserts to enhance strength without sacrificing their lightweight and noise-dampening benefits.

Each type serves a distinct purpose, and the choice depends on factors such as load requirements, environmental exposure, cost considerations, and desired noise levels. In automated sliding doors, combining the appropriate rack type with a compatible gear system ensures both performance and durability.

Process of Precision Track Helical Rack

The manufacturing of precision track helical racks involves a series of carefully controlled processes to ensure accuracy, strength, and long-term performance. These components are often used in high-performance systems such as automated gates, CNC machines, and industrial doors, where consistent linear motion is required.

1. Material Selection:

The process begins with selecting high-grade alloy steel or other suitable materials. The material must have good machinability, strength, and the ability to withstand heat treatment. For some applications, stainless steel or aluminum alloys may also be chosen.

2. Rough Machining:

The initial bar or billet is cut to the required dimensions. Basic shaping is done to create the general profile of the rack. At this stage, allowances are made for subsequent precision machining.

3. Gear Cutting (Helical Teeth):

Using CNC gear hobbing or milling machines, the helical teeth are cut at a specific angle. This step is critical for determining how the gear will mesh with the corresponding helical pinion. Cutting must be consistent to maintain uniform pitch and tooth geometry across the entire rack length.

4. Heat Treatment:

To enhance durability and wear resistance, the gear rack undergoes heat treatment—usually induction hardening or carburizing. This process increases surface hardness while retaining internal toughness.

5. Precision Grinding or Finishing:

Post-heat-treatment, the rack may be ground or finely milled to achieve tight tolerances. This ensures the finished rack meets the specifications required for smooth, precise operation along a track.

6. Quality Inspection:

Each rack is subjected to dimensional checks, hardness tests, and surface finish inspections to confirm that it meets operational standards.

The result of this structured process is a helical rack that combines accuracy, strength, and operational efficiency. Its application in precision tracks enhances system reliability and contributes to long-term performance in automated and mechanical systems.

By understanding the types of sliding door gear racks and the detailed process behind precision track helical racks, designers and engineers can make informed choices that improve both system efficiency and user experience.
