Double pitch sprocket rack pinion gear

Design and Construction

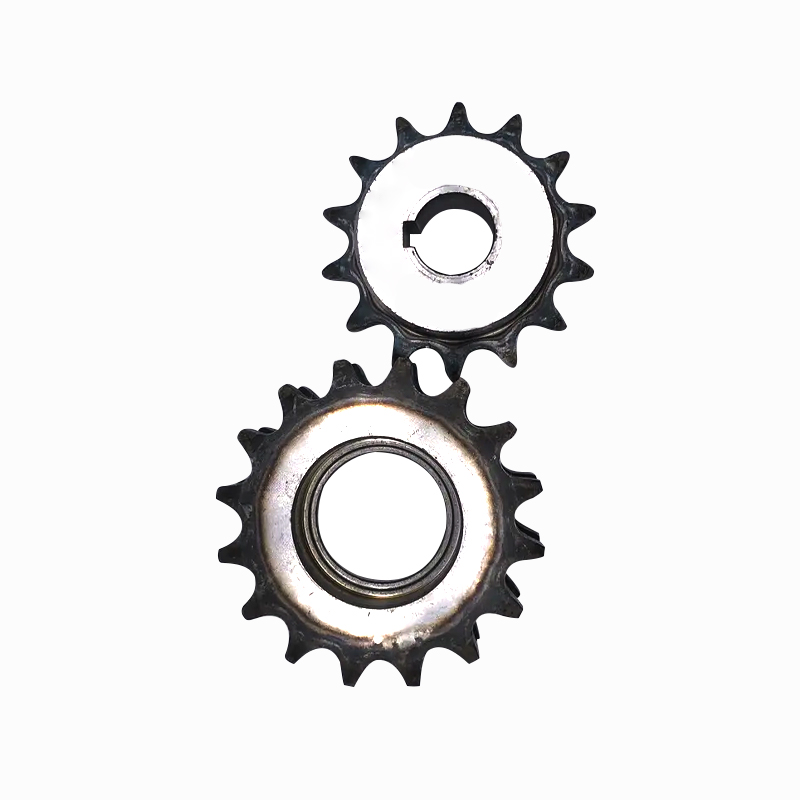

The Double Pitch Sprocket Rack Pinion Gear is engineered with high precision to ensure smooth operation and long service life. The sprocket portion features a double-pitch design, which allows for engagement with chains of different pitches. This dual functionality is particularly useful in applications where multiple chain drives are used in tandem or where a single drive needs to accommodate varying chain sizes. The sprocket is typically made from high-strength steel or other durable materials to withstand heavy-duty use and resist wear.
The rack component of the gear system is designed to provide linear motion with high accuracy. It is manufactured with precise teeth spacing to ensure consistent engagement with the pinion gear. The rack is usually made from hardened steel to provide durability and resistance to deformation under load. The pinion gear, which meshes with the rack, is also constructed from high-strength materials and is designed to withstand the forces generated during operation.

Applications
The Double Pitch Sprocket Rack Pinion Gear finds extensive use in numerous industrial sectors. In the automotive industry, it is employed in conveyor systems for part handling and assembly lines. The ability to control linear motion with precision makes it ideal for positioning components during manufacturing processes. In the packaging industry, this gear system is used in machines that require accurate positioning of products on conveyor belts or during packaging operations.

Advantages
One of the key advantages of the Double Pitch Sprocket Rack Pinion Gear is its versatility. The combination of a double-pitch sprocket and a rack and pinion mechanism allows for a wide range of applications and operational scenarios. This design also provides a high degree of precision in motion control, which is essential in many industrial processes.

Maintenance and Service
To ensure good performance and longevity, regular maintenance of the Double Pitch Sprocket Rack Pinion Gear is essential. This includes periodic inspection of the sprocket and rack for signs of wear or damage, as well as checking the engagement between the pinion gear and the rack. Lubrication of the moving parts is also crucial to reduce friction and prevent premature wear.

The Double Pitch Sprocket Rack Pinion Gear is a robust and versatile mechanical component that offers precise motion control and reliable performance in a wide range of industrial applications. Its unique design combines the functionality of a double-pitch sprocket with the linear motion capabilities of a rack and pinion mechanism, making it a valuable solution for power transmission and positioning tasks. With proper maintenance and service, this gear system can provide long - term reliability and efficiency, contributing to the smooth operation of various industrial processes.
